vCloud Director PAY-AS-GO vCPU default setting – Gotcha

During Partner Exchange I had quite a few discussions with people about the default vCPU setting when creating an Org vDC with a Pay-As-You-Go allocation model.  Now this is nothing new however this is still causing quite a few performance issues out in the field.

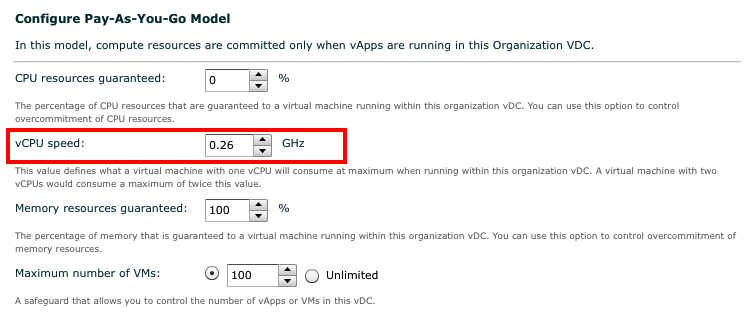

When creating a new Org vDC through the wizard, after selecting the allocation model Pay-As-You-Go, you are shown the configure window.  This window allows configure the compute requirements for this Org vDC.  This is where the gotcha comes in.  The default setting vCPU is configured at 0.26 Ghz.  I will repeat this as I know I have missed it in the past.  The default setting for vCPU is 0.26GHz.   You can see in the screenshot below the default setting.

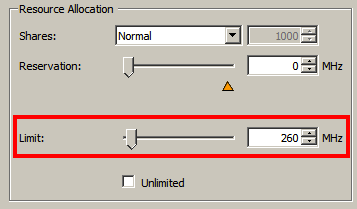

So how does this actually relate to the objects in vCenter?  By leaving this set to the default, this will configure every VM you create with a vCPU limit of 0.26GHz.  The screenshot below shows the vCPU limit configured in vCenter.

If you experience any performance issues running VMs from vCloud Director, it is always best to check the Org vDC vCPU settings in the first instance.

To read an in-depth guide about vCloud Director Allocation models read the article by Duncan Epping at Yellow-Bricks.

Alan Renouf is currently in the process of writing a vCloud health check PowerCLI script to run alongside his vCheck script.  To find out more about these scripts click here.

, , , , , , , ,

5 Responses to vCloud Director PAY-AS-GO vCPU default setting – Gotcha

  1. davehill February 23, 2012 at 10:46 am #

    I have just noticed that Kendrick Coleman also wrote an article on this, however google did not bring any results back 🙂

    http://kendrickcoleman.com/index.php?/Tech-Blog/virtual-machines-exhibit-poor-cpu-performance-in-vcloud-director.html

  2. Alan Renouf February 23, 2012 at 10:52 am #

    You can also easily check to see if you have this issue by using PowerCLI 5.0.1 and this blog post:

    http://blogs.vmware.com/vipowershell/2012/02/checking-the-pay-as-you-go-mhz-issue.html

  3. Jason boche February 23, 2012 at 6:57 pm #

    What should the values be instead?

    • davehill February 24, 2012 at 10:57 am #

      The setting should be configured for the required amount of GHz for a vCPU within the Org vDC. This setting applies to every vCPU you assign to a VM.

Trackbacks/Pingbacks

  1. VMware vCloud Director 101 – Concepts – Allocation Models – Part 3 : Virtual-Blog.com test site - November 20, 2012

    […] Note: I recently wrote an article on a gotcha on configuring Pay-as-you-Go allocation models, the default vCPU is 0.26GHz.  You can read more by clicking here. […]
